详细介绍
产品标准：
UL, VDE, RoHS, CCC, CQC
参数：
Type | Structure Type | Dimension(mm) | Pin Row 1(mm) | Pin Pitch |
Row Pitch |
OD Pin(mm) | ||||
| A | B | C | Pin | Pin Pitch | Pin | Pintch | ||||

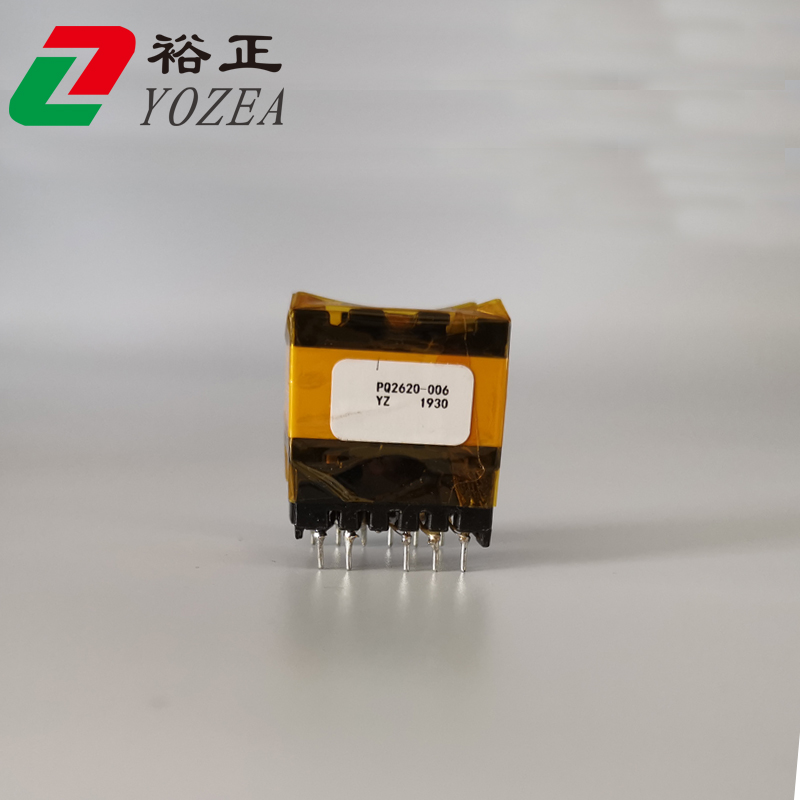

| PQ26-001 | Vertical | 27 | 29.5 | 21 | 6 | 3.8/7.7 | 6 | 3.8/7.7 | 25.5 | Φ0.7 |
| PQ26-002 | Vertical | 27 | 37 | 21 | 6 | 4.5 | 6 | 4.5 | 32.5 | Φ0.8 |
| PQ26-003 | Vertical | 27 | 29.5 | 23 | 6 | 3.8/7.5 | 6 | 3.8/7.5 | 25.4 | Φ0.6 |
| PQ26-004 | Vertical | 27 | 29.5 | 26 | 6 | 3.8/7.5 | 6 | 3.8/7.5 | 25.4 | Φ0.7 |
我司提供高频变压器定制服务
设计高频变压器请提供以下参数：
1. 电路拓扑
2. 工作频率
3. 输入电压范围
4. 输入电压
5. 输入电流
我司生产的高频变压器系列
EE Series | EE10, EE12, EE12.5, EE12.7, EE13, EE16, EE19, EE20,EE22, EE25, EE28, EE30, EE33, EE40, EE42, EE55, EE65 |
EF Series | EF12.6, EF16, EF20, EF25 |
EFD Series | EFD15, EFD16, EFD20, EFD25, EFD30 |
EP Series | EP7, EP10, EP13 |
EPC Series | EPC13, EPC14, EPC17, EPC19, EPC25, EPC27, EPC30, EPC54 |
PQ Series | PQ20, PQ26, PQ32, PQ35, PQ40, PQ50 |
ER Series | ER9.5, ER11.5, ER14.5, ER20, ER25, ER28, ER35, ER40, ER42, ER43, ER49 |
