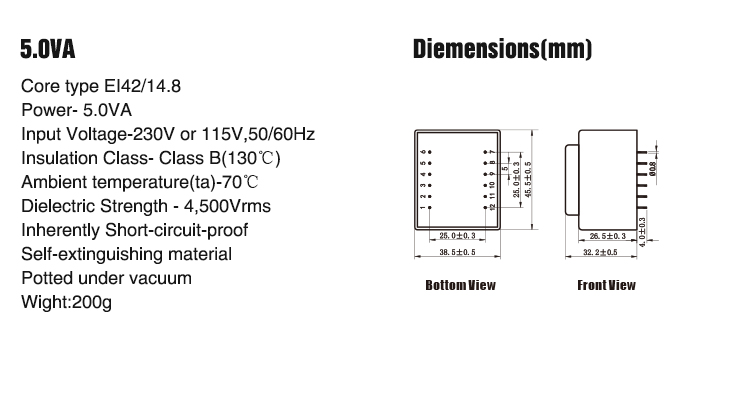

| Primary Voltage 420v | ||||||
| Part Number |
Primary (V) |
Secondary (V) |
secondary (mA) |
No-Load Voltage(V) | Ambient Temperature | Approval |
| YZ42S050-0607B | 230 | 6 | 833.3 | 7.8 | ta 70/B |
UL CE |
| YZ42S050-0907B | 230 | 9 | 555.6 | 11.7 | ta 70/B | |
| YZ42S050-1207B | 230 | 12 | 416.7 | 15.6 | ta 70/B | |
| YZ42S050-1507B | 230 | 15 | 333.3 | 19.5 | ta 70/B | |
| YZ42S050-1807B | 230 | 18 | 277.8 | 23.4 | ta 70/B | |
| YZ42S050-2407B | 230 | 24 | 208.3 | 31.2 | ta 70/B | |
| YZ42D050-0607B | 230 | 2×6 | 2×416.7 | 2×7.8 | ta 70/B | |
| YZ42D050-0757B | 230 | 2×7.5 | 2×333.3 | 2×9.8 | ta 70/B | |
| YZ42D050-0907B | 230 | 2×9 | 2×277.8 | 2×11.7 | ta 70/B | |
| YZ42D050-1207B | 230 | 2×12 | 2×208.3 | 2×15.6 | ta 70/B | |
| YZ42D050-1507B | 230 | 2×15 | 2×166.7 | 2×19.5 | ta 70/B | |
| YZ42D050-1807B | 230 | 2×18 | 2×138.9 | 2×23.4 | ta 70/B | |
| YZ42D050-2407B | 230 | 2×24 | 2×104.2 | 2×31.2 | ta 70/B | |
| Primary Voltage 115v | ||||||
| Part Number |
Primary (V) |
Secondary (V) |
secondary (mA) |
No-Load Voltage(V) | Ambient Temperature | Approval |
| YZ42US050-0607B | 115 | 6 | 833.3 | 7.8 | ta 70/B |
UL CE |
| YZ42US050-0907B | 115 | 9 | 555.6 | 11.7 | ta 70/B | |
| YZ42US050-1207B | 115 | 12 | 416.7 | 15.6 | ta 70/B | |
| YZ42US050-1507B | 115 | 15 | 333.3 | 19.5 | ta 70/B | |
| YZ42US050-1807B | 115 | 18 | 277.8 | 23.4 | ta 70/B | |
| YZ42US050-2407B | 115 | 24 | 208.3 | 31.2 | ta 70/B | |
| YZ42UD050-0607B | 115 | 2×6 | 2×416.7 | 2×7.8 | ta 70/B | |
| YZ42UD050-0757B | 115 | 2×7.5 | 2×333.3 | 2×9.8 | ta 70/B | |
| YZ42UD050-0907B | 115 | 2×9 | 2×277.8 | 2×11.7 | ta 70/B | |
| YZ42UD050-1207B | 115 | 2×12 | 2×208.3 | 2×15.6 | ta 70/B | |
| YZ42UD050-1507B | 115 | 2×15 | 2×166.7 | 2×19.5 | ta 70/B | |
| YZ42UD050-1807B | 115 | 2×18 | 2×138.9 | 2×23.4 | ta 70/B | |
| YZ42UD050-2407B | 115 | 2×24 | 2×104.2 | 2×31.2 | ta 70/B | |
| Primary Voltage 115v×2 | ||||||
| Part Number |
Primary (V) |
Secondary (V) |
secondary (mA) |
No-Load Voltage(V) | Ambient Temperature | Approval |
| YZ42XD050-0607B | 2×115 | 2×6 | 2×416.7 | 2×7.8 | ta 70/B |
UL CE |
| YZ42XD050-0907B | 2×115 | 2×9 | 2×277.8 | 2×11.7 | ta 70/B | |
| YZ42XD050-1207B | 2×115 | 2×12 | 2×208.3 | 2×15.6 | ta 70/B | |
| YZ42XD050-1507B | 2×115 | 2×15 | 2×166.7 | 2×19.5 | ta 70/B | |
| YZ42XD050-1807B | 2×115 | 2×18 | 2×138.9 | 2×23.4 | ta 70/B | |
| YZ42XD050-2407B | 2×115 | 2×24 | 2×104.2 | 2×31.2 | ta 70/B | |
